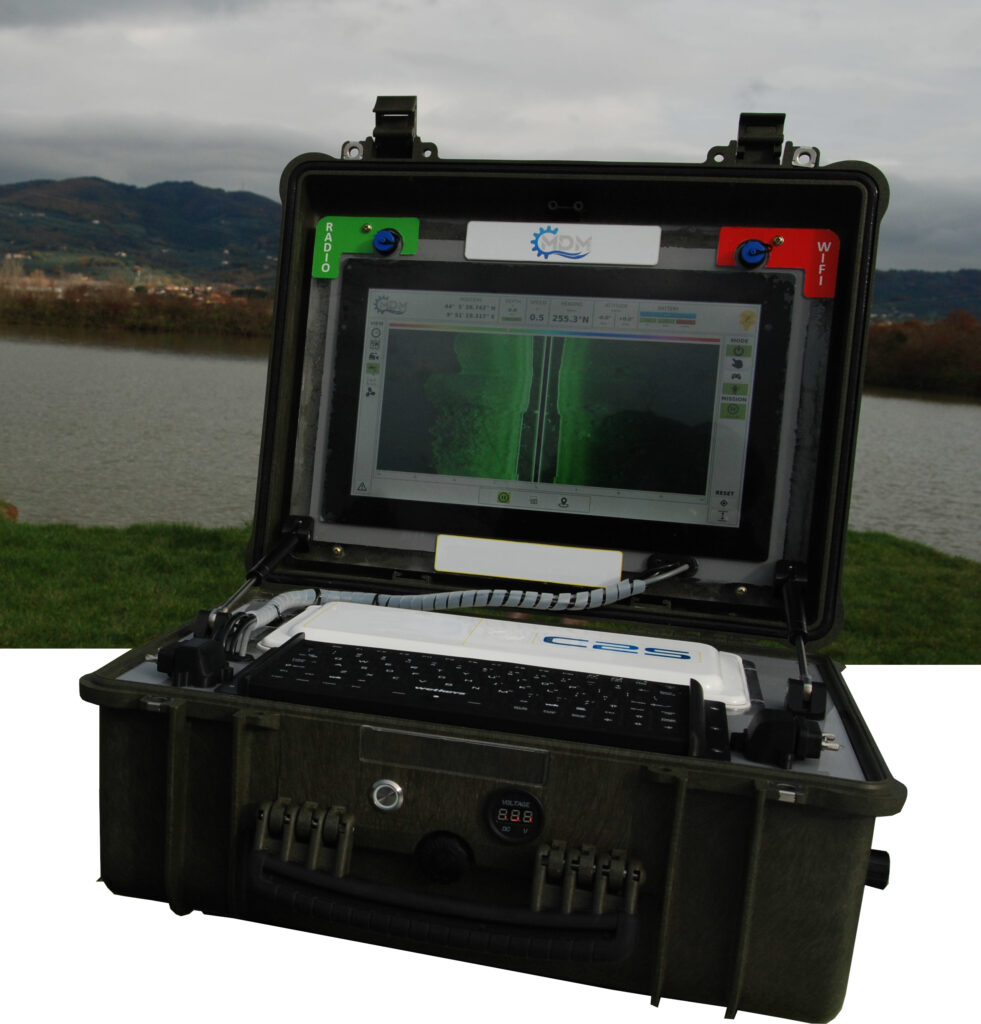

Control Station

An integrated advanced solution to be effective during surveys with our vehicles.

Highlights:

  • Outdoor 15” Touchscreen (850 NIT)
  • Waterproof parts (IP65 min)
  • Long Endurance (UPS+ LiFePo4 4Sx60Ah)
  • External Ports:
    • 1 x HDMI (Optional)
    • 2 x RS232 (Optional)
    • 2 x USB3.0
    • 2 x 802.3af/at PoE  / GbE Ethernet
    • 1 x (24V + RS232) Powered Acoustic Modem I/O (Optional)
    • 1 x (5V + 24V) Power Line
    • 1 x Power Supply
  • External Antennas:
    • WiFi 2.4Ghz
    • UHF Radio 848Mhz (Optional)
    • LoRa Radio Link (Optional)
  • Integrated Antennas: GPS with u-Blox Receiver

Human Machine Interface HMI

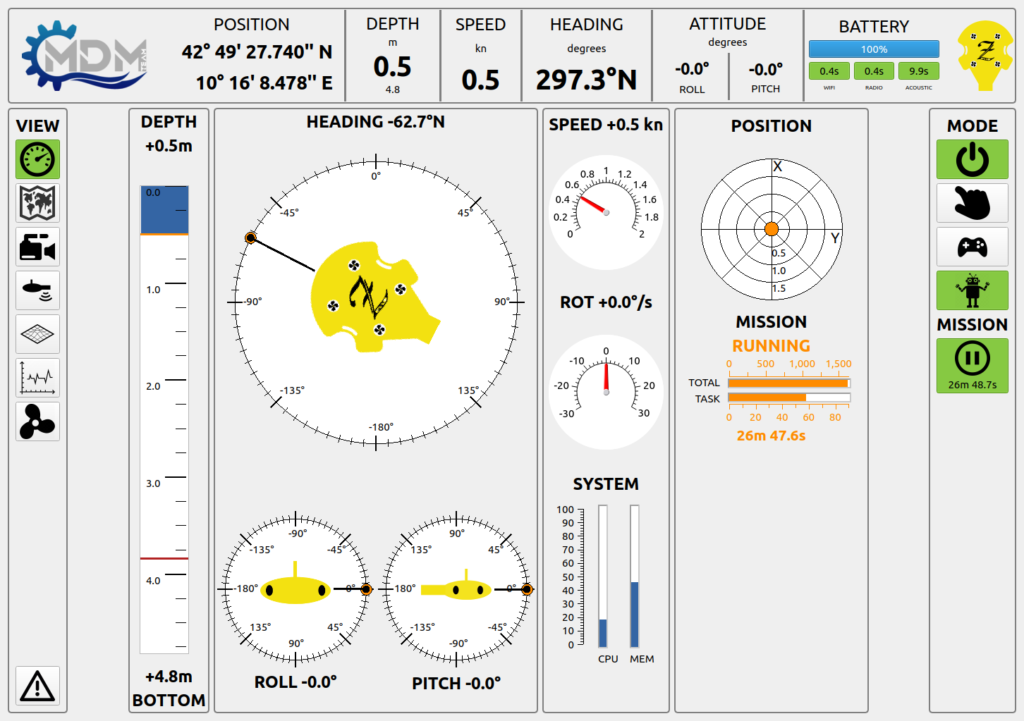

Dashboard

Dashboard view can be used to monitor mission details such as task duration vs mission duration, current speed and rate of turn. The vehicle depth is depicted together with the estimated sea bottom depth. Finally, roll pitch and yaw can be adjusted when autonomous mode is selected. For small position changes a dedicated widget is used to perform motion relative to the vehicle heading.

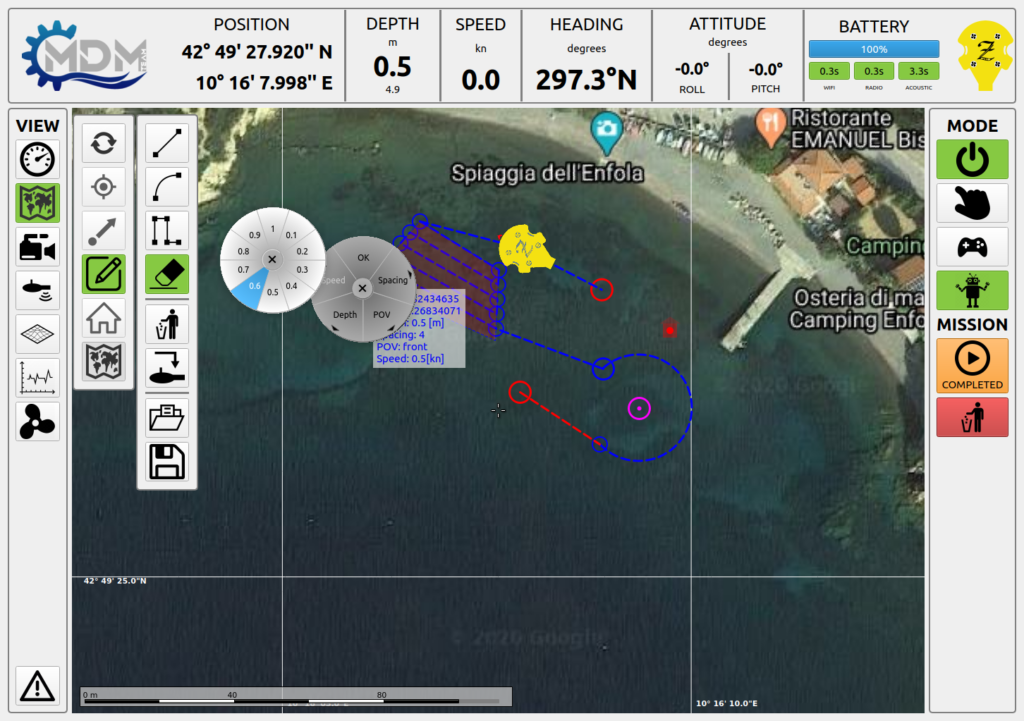

Mission Planner​

Our mission planner is extremely advanced. We can perform classic survey patterns, lines, circle and 3D paths. For high maneuverable vehicles we can also customize every individual tasks, including point of view, change of attitude and much more.

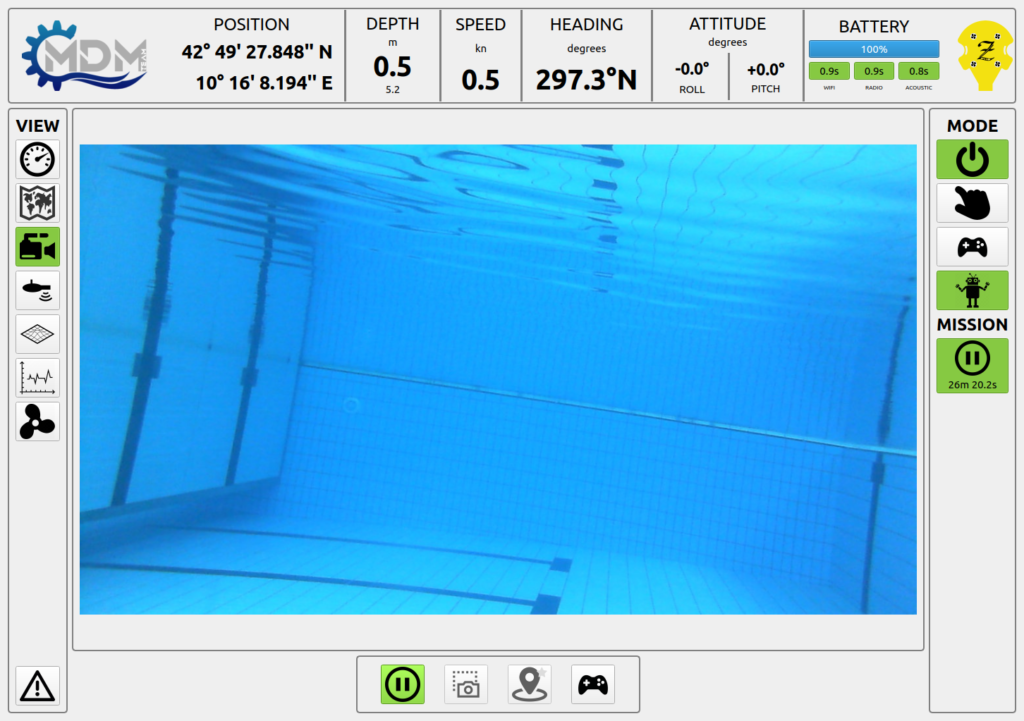

Camera Feed​

We provide full integration of camera into our human machine interface to simplify inspections and provide the ultimate real-time feedback to our customer. We also provide an easy access to common features, for example to collect screenshot or to save a point of interest into the geographic map to support advanced replanning of the mission.

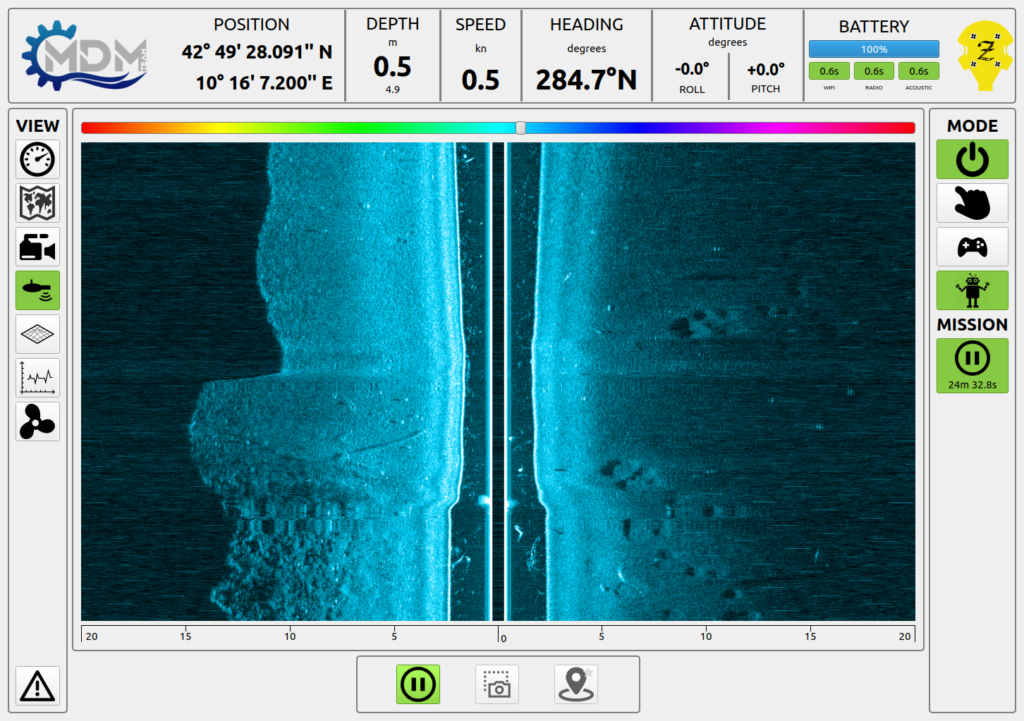

Acoustic Data​

When used for seabed inspection, hydrographic or oceanographic purposes, the vehicles will collect and send acoustic data to the human interface where is presented to the operator. Operator can easily take screenshot or save the point of interest into the geographic map to support advanced replanning of the mission.

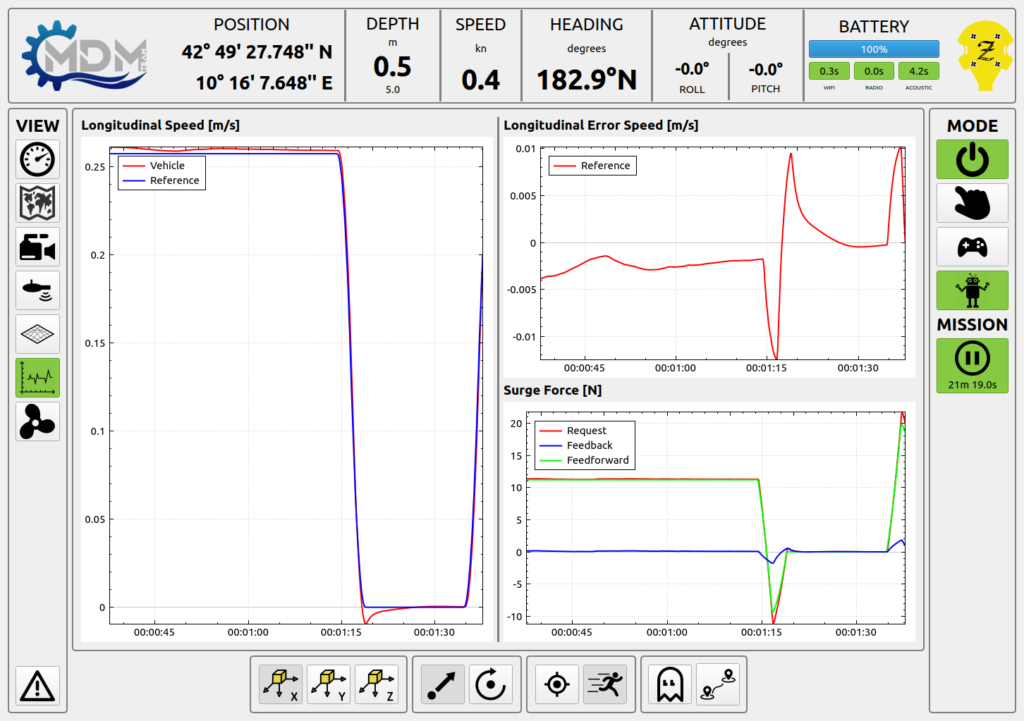

Real-Time Telemetry​

All data of the vehicle are presented through a simple interface providing access to both position, angles, speed over all axes. With such a simple instrument, operator can monitor all the telemetry of the vehicles while the vehicle is performing the underwater survey.

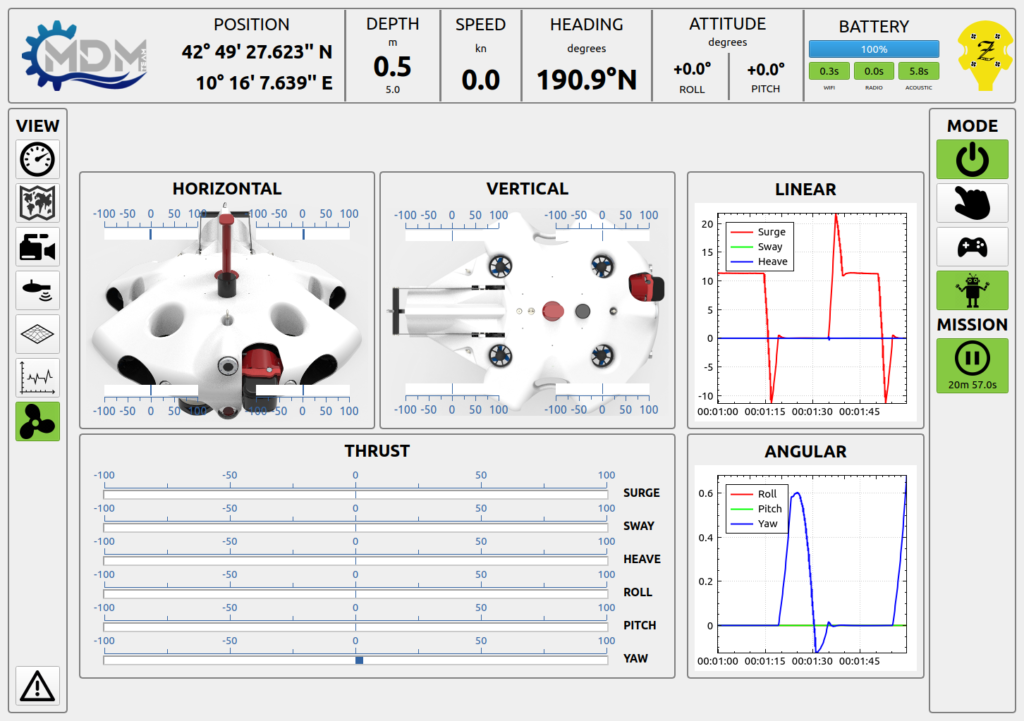

Motor Status​

All the vehicles are equipped with several underwater thrusters and/or effectors to enable motion. The usage of every individual thruster is presented along with the overall forces and moments demand.
